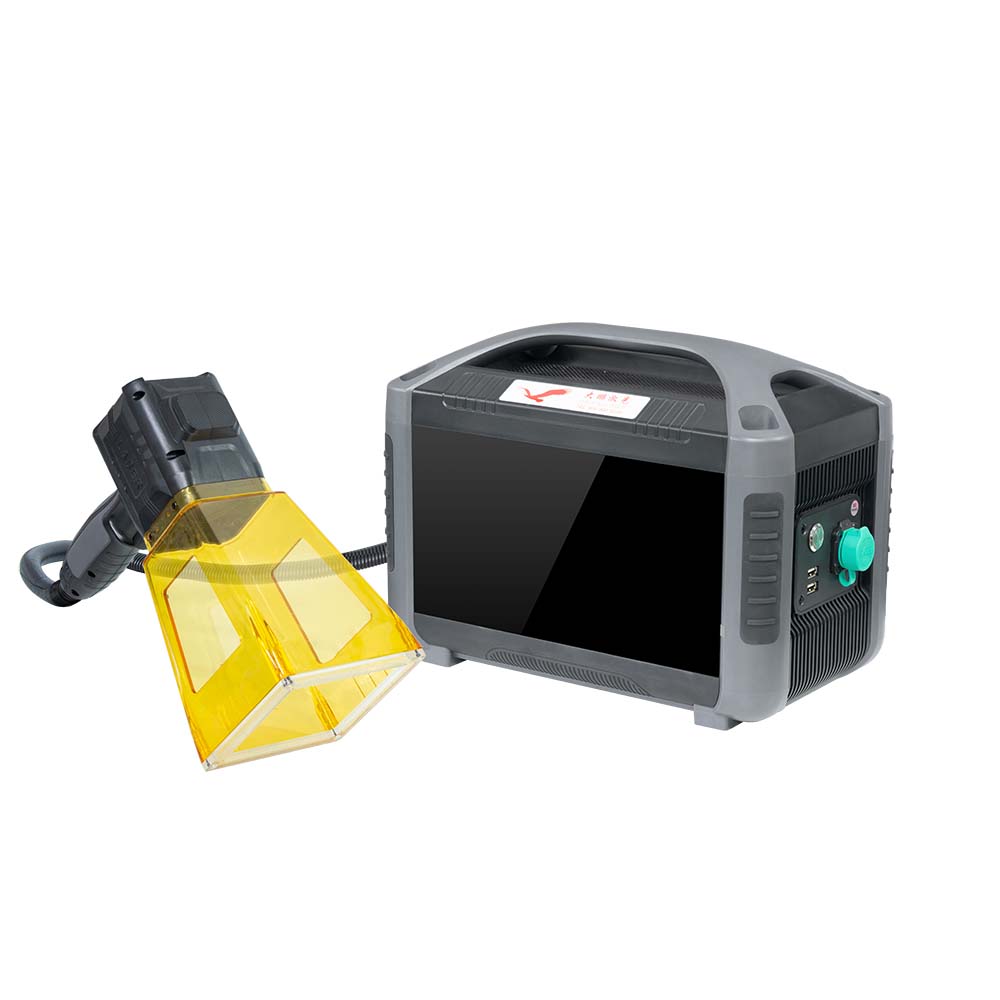

Lightweight Handheld Laser Marking Machine

Handheld Portable Fiber Laser Marking Machine

The 20W 30W handheld laser marking machine is capable of marking various types of content, including text, serial numbers, dates, logos, graphics, barcodes, and QR codes. It uses a fiber laser, which is known for its efficiency and accuracy in creating precise marks on different materials such as metals, plastics, ceramics, and more.

Portable Handheld Laser Marking Machine

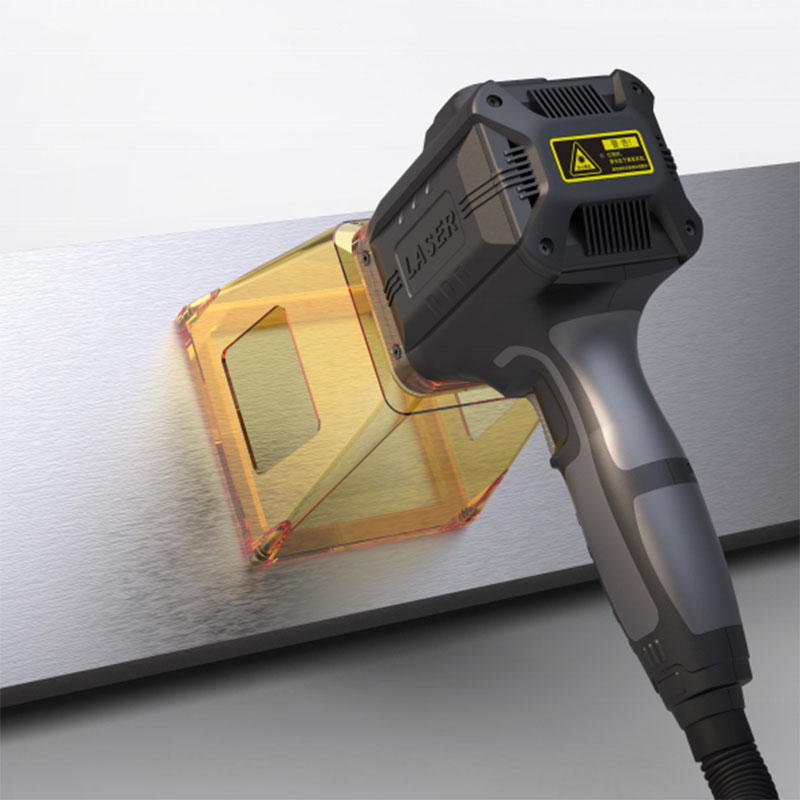

Hand-held fiber laser marking machine is specially designed to solve various marking difficulties. Advanced laser technology is used to realize fast focusing and high- precision marking. With highly integrated design, the body is small and light, and the battery is detachable, which can provide unlimited endurance and improve work efficiency. Hand- held laser equipment has a wider range of use and higher flexibility, which can meet the daily needs.

Portable laser marker is capable of marking various types of content, including text, serial numbers, dates, logos, graphics, barcodes, and QR codes. It uses a fiber laser, which is known for its efficiency and accuracy in creating precise marks on different materials such as metals, plastics, ceramics, and more.

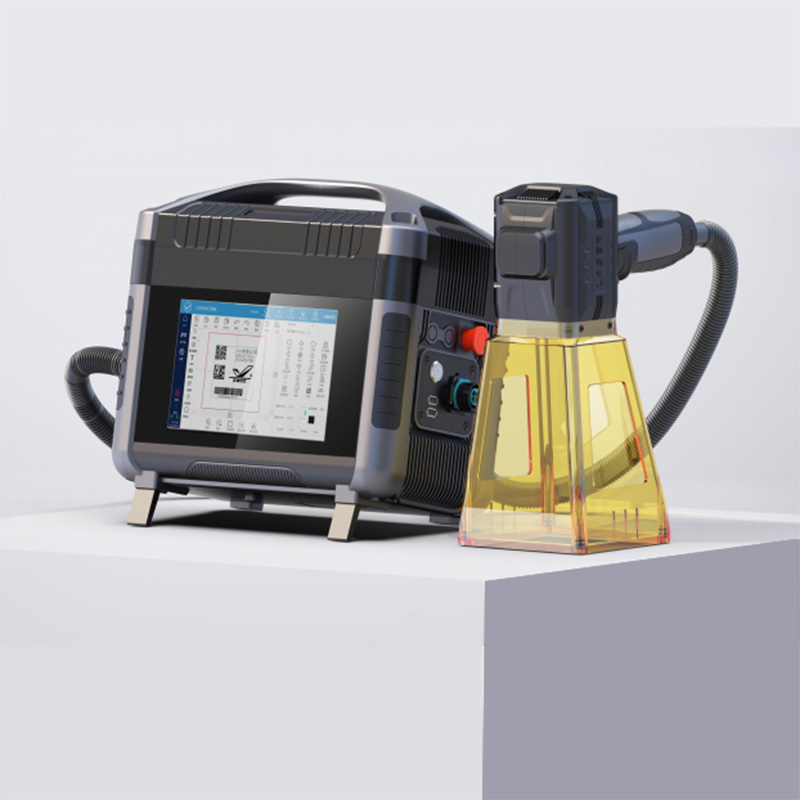

Its portability as a handheld device allows for flexibility in marking objects of various sizes and shapes. With the precise control provided by the touch screen and software, you can achieve detailed and high-quality markings.

Main features of Small Portable Fiber Laser Engraver
1. The whole machine adopts blow molding shell, the whole machine weight is only 6.5kg.
2. 220V plug-in version and battery charging version, to meet the different needs of customers.
3. Plug-in version plug-in that is, convenient and fast.
4. Rechargeable version of the battery removable design, charging offline or built-in, with a backup battery, you can infinite life.

Performance Advantages

  • Price advantage, quality assurance
    Provide high-quality quality at a reasonable price, laser making technology universal.
  • Operating System
    Touch screen, easy to operate, configure the Linux operating system, which can be operated by hand, and is more simple and smooth.
  • Endurance
    Dismantle the battery to ensure a safe life. It is equipped with a 1 KG high capacity lithium battery and has unlimited endurance.
  • Technical
    Infrared positioning, accurate marking. Advanced laser technology is used to realize fast focusing and high-precision marking.
  • Weight
    Body design, small and light. The overall weight is 6. 5 KG, which conforms to the ergonomic design. It is portable and flexible.
  • Transportation
    Lightweight packaging and fast transportation. The package of complete equipment is only 10KG at most, which can greatly reduce the transportation cost and effectively reduce the time cost and transportation cost.

Distributor Price

20W – DP-20-SAC – $1571
20W – DP-20-SDC – $1643 (Chargeable Battery, 5 hours usable)
30W – DP-30-SAC – $1714
30W – DP-30-SDC – $1857 (Chargeable Battery, 5 hours usable)

Applications industry

Hand-held portable laser marking machine is widely used in various industries: medical industry, electronic industry, food industry, packing industry, hardware industry, mechanical parts, clothing leather, etc.

Applied materials

It is applicable to all kinds of metal materials, such as gold, silver, copper, steel, etc., and also to some non- metallic materials, such as paper, plastic, glass, etc. The range of application materials is wide, which can be used for trademark coding, bar code marking and other personalized customization.

Paper marking Plastic marking Wood marking Metal marking
Paper marking Plastic marking Wood marking Metal marking

Lightweight Handheld Laser Marking Machine



Model

20W-DP-20-SAC, 20W-DP-20-SDC, 30W-DP-30-SAC, 30W-DP-30-SDC

Technical Parameters

Laser Fiber laser generator
Output power 20W/25W/30W
Marking range 70*70mm/100*100mm ( Optional )
Deflection seismoscope High-precision two-dimension scanning system
Laser wavelength 1064mm
Focus lens 130mm
Marking speed <7000 mm/s
Master control Integrated motherboard, 8-inch capacitance full-fit screen
Operating system Linux system
Marking line type Dot-matrix and vector all-in-one machine
Line width 0.03 mm
Repetitive positioning accuracy 0.01 mm
Positioning method Red light positioning and focusing
Number of engraved character lines Any line within the valid marking range
Printing speed 800 characters ( related to material and printing content)
Font Chinese and English, digital, traditional Chinese and other standard font
File format BMP/DXF/HPGL/JPEG/PLT
Bar code CODE39/CODE128/CODE126. QR
Power 1 1 0V/220V AC. lithium cel(216wh)
Overall power consumption 145-250W
Operating temperature of the whole machine 0~40°C
Operating Weight 6~6.8KG

Product Manual

Handheld Laser Marking Machine Product Manual
