Titanium, known for its chemical inertness, high strength, and lightweight properties, is widely used in aerospace, automotive, marine and medical device industries. However, its high hardness, melting point, and excellent thermal and electrical conductivity present significant challenges for conventional machining methods such as cutting, drilling, and milling. Titanium laser cutting machine offers an effective solution to these issues, providing a modern, efficient approach to processing titanium materials.
With its exceptional precision and speed, fiber laser cutting machine has become the best choice for cutting titanium plates. By focusing a high-energy laser beam onto the surface of the titanium, the material is rapidly melted or vaporized, enabling clean, precise cuts with minimal mechanical stress.
Compared with water jet and plasma cutting methods, laser cutting is much faster and can significantly improve production efficiency. Laser cutting offers high precision, making it suitable for applications that demand strict accuracy in titanium metal processing. In addition, laser cutting features a narrow kerf and a small heat-affected zone, which helps reduce material waste and minimizes the need for subsequent processing.
Can You Laser Cut Titanium?
The answer is yes—titanium alloys are well-suited for laser cutting. As a highly efficient and precise metal processing technology, laser cutting is widely used for various metal materials, and titanium alloys are no exception.
Due to their high melting point and good thermal conductivity, titanium alloys can quickly absorb laser energy and melt during the cutting process, enabling efficient cutting. Moreover, the melting and vaporization temperatures of titanium alloys are relatively close, which helps control the kerf width and heat-affected zone, thereby enhancing cutting precision. By adjusting laser power, cutting speed, and using assist gases, laser cutting can be adapted to different thicknesses and types of titanium alloys.
However, it’s worth noting that titanium alloys are highly reflective to laser beams, so high-power laser equipment is required for effective processing. Additionally, the oxide layer on the surface of titanium is prone to oxidation during cutting. To minimize adverse reactions and improve cut quality, inert gases such as nitrogen or argon are often used as assist gases during the process.

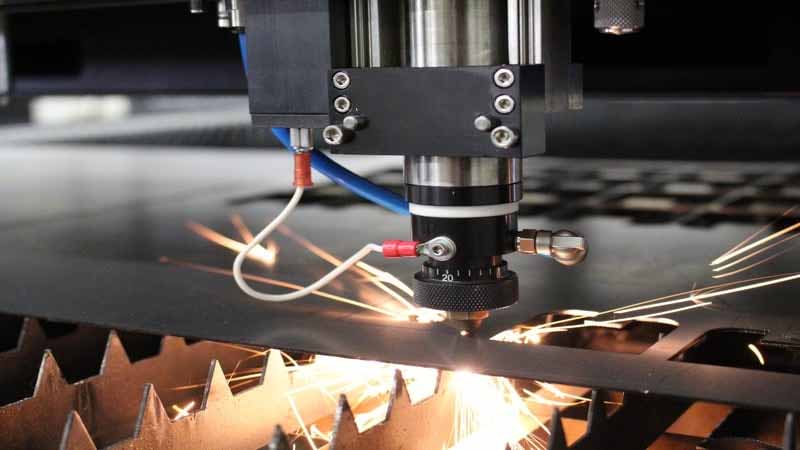

How to Laser Cut Titanium?
To laser cut titanium sheet, use a high-power fiber laser source with proper settings for power and speed. Assist the cut with inert gases such as nitrogen or argon to prevent oxidation. Adjust optical lenses and parameters based on the thickness and type of titanium alloy for clean, precise results.
- Thin Sheet Cutting: Laser cutting is ideal for titanium sheets typically up to 10 mm thick.
- Complex Shape Cutting: Laser machines can follow custom designs, making it possible to cut intricate curves and patterns.
- Small-Batch Production: Laser cutting is highly efficient for small production runs, offering speed and flexibility without the need for molds or tooling.
How to Choose the Right Cutting Method for Titanium Sheets?
When cutting titanium sheet metal, the choice between laser cutting and water jet cutting depends on factors such as material thickness, required precision, edge quality, and post-processing needs.
✅ Choose Laser Cutting When:
- Sheet is relatively thin (≤10 mm): Laser cutting is highly efficient and precise for thin titanium alloys. It produces narrow kerfs, minimal deformation, and clean edges.
- High precision and edge quality are required: Ideal for industries like aerospace, medical, or electronics where tight tolerances and smooth surfaces are essential.
- Fast processing and batch production are needed: Laser cutting is quick and well-suited for mass production of medium to thin titanium sheets.
- Post-cut welding or precision assembly is needed: The small heat-affected zone preserves material integrity and dimensional stability, which is crucial for further assembly or joining processes.
✅ Choose Water jet Cutting When:
- Sheet is thick (>10 mm, up to 100 mm or more): Water jet cutting handles thick titanium sheets effectively without being limited by material thickness.
- Material is extremely heat-sensitive: As a cold-cutting method, water jet avoids thermal effects, preventing microstructural changes or oxidation that can result from heat.
- No thermal deformation or edge alteration is allowed: Especially in chemical, defense, or specialized equipment manufacturing, water jet cutting preserves the original material properties.

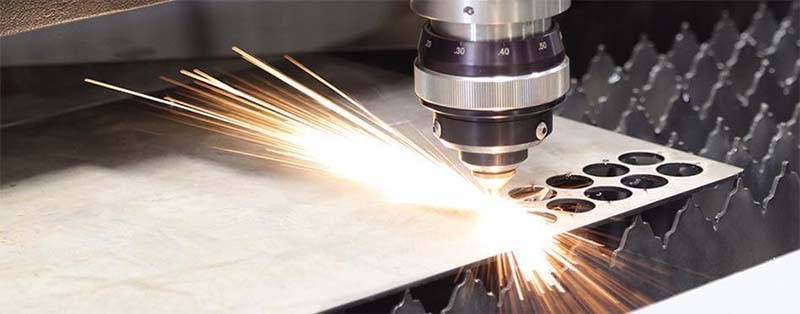

Advantages of Laser Cutting Titanium Plate
- High Cutting Precision
Laser cutting offers extremely precise control, achieving millimeter-level—or even higher—accuracy. It’s ideal for machining titanium alloy parts that require strict dimensional tolerances.
- Minimal Heat-Affected Zone
As a non-contact cutting method, laser cutting generates a small heat-affected zone, reducing material deformation and internal stress. Titanium is less prone to warping during laser processing, which results in tighter part tolerances and higher overall product quality.
- Excellent Edge Quality
When using high-purity nitrogen as the assist gas, laser cutting produces clean, smooth edges with minimal dross or burrs. This also promotes the formation of a strong oxide layer, offering better protection for the final part.
- Minimal Material Waste
Laser cutting is efficient across a wide range of titanium thicknesses. The focused beam cuts precisely, minimizing waste and scrap during processing, which helps reduce overall material costs.
- High Cutting Efficiency
Laser cutting is fast and responsive, making it highly suitable for batch production. It significantly boosts manufacturing efficiency and shortens delivery times.
- Versatile Application
Laser cutting can handle titanium alloys of various thicknesses and hardness levels, meeting diverse processing requirements across different industries.
What are the Challenges of Fiber Laser Cutting Titanium?
1. High Initial Investment
Titanium cutting requires high-precision, high-power laser equipment, making the initial cost of purchasing a laser cutter capable of processing titanium relatively high. This can be a burden for small businesses and startups.
2. Burr Formation
Burrs may form on the surface of titanium alloys during laser cutting, especially when using argon or nitrogen as assist gases. These burrs need to be removed through mechanical or chemical processes after cutting.
Minimizing Burrs: Adjusting cutting parameters like power and speed can help reduce burr formation. Increasing speed or reducing power can minimize burrs, but care must be taken to maintain cutting quality.
3. Oxide Layer
Oxide Layer Formation: When cutting titanium alloys, especially with oxygen assist gas, a brittle titanium oxide layer can form at the cut edge. This can affect cutting quality and may reduce the strength of the product.
Reducing Oxide Layer: Using nitrogen as an assist gas can help minimize oxide formation, improving the quality of the cut edges. If the oxide layer becomes too thick, post-processing is required to remove it.
4. Deformation
- Thermal Impact and Deformation: Titanium alloys have poor thermal conductivity, so the heat generated during laser cutting can lead to thermal expansion, potentially causing deformation if heat is not properly dissipated. This is particularly true for long or thick cuts.
- Minimizing Deformation: Reducing cutting speed, lowering laser power, and optimizing the cutting sequence can help control heat accumulation and avoid deformation. Cooling systems or staged cutting can also reduce thermal effects.
5. Special Equipment Requirements
- Equipment Selection: Titanium is a high-strength material that requires specialized laser cutting equipment. These machines are often costly, making it less economical for small to medium-sized businesses to invest in them.
- Equipment Configuration: Ensure that the laser cutting equipment’s power, focal length, and assist gas control systems are tailored for titanium cutting to ensure stable cutting results and material integrity.
6. Surface Treatment
- Impact of Oxide Layer: Titanium alloys have excellent corrosion resistance, but the oxide layer on the surface can significantly affect cut quality, leading to uneven cuts or rough surfaces. Pre-cut surface treatment, such as removing the oxide layer, is often necessary.
- Post-Processing: After cutting, chemical treatments or mechanical polishing can be used to remove the oxide layer, enhancing both the appearance and performance of the product.
Assist Gases for Laser Cutting Titanium Alloys
Nitrogen (N₂):
Nitrogen is a commonly used assist gas for laser cutting titanium alloys, offering good performance in both cutting quality and speed. Nitrogen enhances combustion and cooling, creating high temperature and pressure at the titanium surface, which helps melt and oxidize the alloy. Additionally, nitrogen can form a passivation layer, effectively protecting the titanium surface and preventing issues such as burn damage and oxidation.
Argon (Ar):
Argon is another widely used assist gas in laser cutting of titanium alloys, providing stable and continuous cutting effects. While its combustion and cooling properties are weaker compared to nitrogen, argon delivers higher energy density and less energy loss, thus improving cutting efficiency.
Oxygen (O₂):
Oxygen can interact with the titanium surface to form an oxide layer, which increases cutting depth and speed during the laser process. However, excessive oxygen can negatively affect the titanium surface quality, causing undesirable phenomena such as reflection and vaporization.

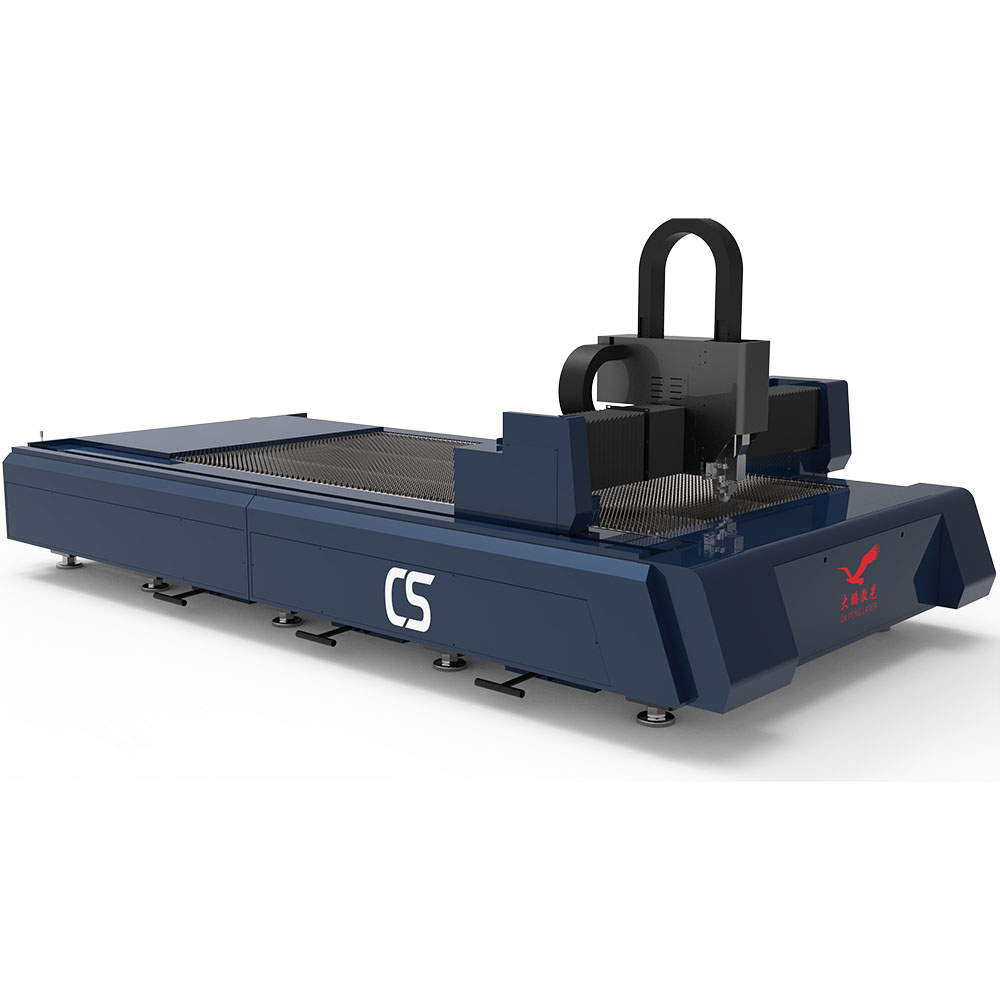

Laser Cutting Machine Fiber Laser Cutter for Steel, Aluminum, Titanium, Copper
DPLASER fiber laser cutting machine is an advanced laser cutter for metal. The high-energy laser beam is focused on the surface of the workpiece, instantly melting and vaporizing the irradiated area. The molten material is blown away by assist gases. Compared to conventional CO₂ laser cutting machines, fiber laser cutting machines save space, reduce gas consumption, and offer a higher photoelectric conversion rate.
Fiber laser cutting machines can be used to cut a variety of metals, including stainless steel, carbon steel, copper, aluminum, brass, gold, silver, iron, titanium, alloys, and more.
When selecting the best titanium metal laser cutter, factors such as power, cutting control systems, and cooling systems must be considered. Our machines are renowned for their reliability and high precision, ensuring they meet all your needs.
Applications of Laser Cutting Titanium Metal
- Aerospace: Titanium is used for manufacturing critical aircraft components such as panels, frames, brackets, and engine parts like turbine blades, compressor discs, and exhaust systems.
- Sports Equipment: Due to its strength, hardness, and fatigue resistance, titanium is widely used in lightweight sports equipment such as high-performance bicycles, racquets, and golf clubs.
- Building Materials: Titanium is suitable for architectural decoration and structural components due to its excellent strength and corrosion resistance.
- Industrial Parts: Titanium is commonly used for manufacturing pressure-bearing and corrosion-resistant parts like tanks, pipes, and valves.
- Electronics: Titanium is used in the casings of products like watches, computers, and smartphones, offering both lightweight and durability.
- Fasteners: Titanium washers, bolts, and screws are extensively used in applications where both strength and low weight are crucial.
- Medical Equipment: Titanium is used for surgical instruments, prosthetics, and implants, thanks to its high biocompatibility and corrosion resistance, making it ideal for medical applications.
Why Choose Dapeng Fiber Laser Cutting Machine for Titanium?
- High-Quality Laser Cutter
Dapeng Laser Fiber Laser Cutting Machines use advanced technology to deliver high-precision and high-speed cutting results, ensuring stable and accurate titanium metal cutting quality.
- Exceptional Customer Service
Dapeng Laser offers comprehensive customer support, including equipment installation, debugging, training, and after-sales service, ensuring customers can use the equipment efficiently and without worries.
- Customized Solutions
Dapeng Laser provides tailored solutions based on customer needs and specific applications, ensuring optimal production results and performance.
In conclusion, laser cutting titanium sheet offers numerous advantages, including high precision, fast cutting speeds, and minimal heat-affected zones. This makes it an ideal choice for industries requiring intricate and high-quality cuts, such as aerospace, automotive, and medical applications. With the ability to handle various thicknesses and achieve clean, accurate edges, laser cutting ensures superior performance and efficiency. Whether for small-scale prototypes or large-scale production, the laser cut titanium sheet provides the reliability and consistency needed for a wide range of demanding projects.
